Rau 3D luam ntawv orthotics manufacturers, qhov zoo ntawm cov khoom kawg pib ntev ua ntej luam ntawv. Nws pib nrog cov ntaub ntawv. Yog hais tias tus qauv ko taw qub tsis tiav, distorted, los yog raws li ib tug 2D hneev taw, qhov kawg orthotic ntaus ntawv yuav ua tsis tau raws li tus neeg siv lub cev lub cev tiag tiag. Qhov no yog qhov tseem ceeb tshaj plaws rau kev ua haujlwm orthotics xws li kev txhawb nqa kev kho bunion, cov khoom siv hauv siab orthotic, kev cai insoles, thiab cov khoom siv khau ntawm tus kheej.
Cov ko taw feem ntau hu ua lub cev "lub siab thib ob," tab sis los ntawm kev tsim khoom orthotic, nws kuj yog lub hauv paus ntawm tag nrho cov saw hlau. Cov qauv ko taw txawv txav tuaj yeem cuam tshuam pob qij txha, lub hauv caug loading, pelvic balance, thiab spinal posture. Thaum cov ntaub ntawv ko taw tsis raug, qhov tshwm sim tsis yog qhov tsis zoo xwb - lawv kuj tuaj yeem cuam tshuam kev nplij siab, kev kho kom zoo, thiab kev ua raws li cov neeg siv sijhawm ntev -.
Yog vim li casSTL cov ntaub ntawv format export rau 3D luam orthoticsyog dhau los ua lub peev xwm tseem ceeb rau B2B orthotic manufacturers, 3D luam ntawv muab kev pabcuam, cov khoom tsim khoom orthopedic, cov chaw tsim khoom kho kom zoo nkauj, thiab cov khw muag khoom khau.
Xianku's 3D ko taw scanning system muab cov haujlwm ua tiav digital:1-thib ob infrared qauv teeb scanning → 5-thib ob daim ntawv qhia tiam → ± 1mm precision ntsuas → 1: 1 full-ko taw 3D qauv → STL/OBJ 3D qauv export → 3D luam orthotic customization.
Vim li cas STL Cov Ntaub Ntawv Zoo Matters hauv 3D Luam Ntawv Orthotics
STL yog ib qho ntawm cov ntaub ntawv siv dav tshaj plaws hauv 3D luam ntawv. Nws khaws 3D nto raws li lub mesh ua los ntawm cov duab peb sab. Rau cov tuam txhab orthotic, cov ntaub ntawv STL ua haujlwm ua tus choj ntawm tib neeg ko taw thiab cov khoom luam tawm.
Hauv kev cai orthotics, siab - cov ntaub ntawv STL zoo pab txhawb:
- Qhov tseeb ko taw zoo li yug me nyuam
- Zoo haum ntawm orthotic thiab ko taw nto
- Ntau txhim khu kev qha CAD hloov kho
- Txhim kho kev tsim ntawm thaj chaw txhawb nqa
- Kev hloov pauv sai dua los ntawm cov ntaub ntawv luam theej duab rau cov qauv luam tawm
- Txo kev siv phau ntawv ua qauv ua haujlwm
- Kev tsim khoom zoo sib xws hauv ntau qhov kev txiav txim
- Zoo dua compatibility nrog 3D printing workflows
Rau cov khoom xws li bunion orthotics, siab arch support, functional insoles, heel stabilization devices, or customized footwear Cheebtsam, STL cov ntaub ntawv yuav tsum muaj kev cuam tshuam qhov tseeb qauv ntawm ko taw - tsis yog ib tug tiaj tus hneev taw los yog kwv yees qhov loj me.
Hauv B2B ntau lawm, cov ntaub ntawv tawm tswv yim tsis zoo tsim teeb meem hauv qab: kev kho phau ntawv ntau dua, kev ua haujlwm qis dua, kev tsis txaus siab ntau dua, thiab cov nqi rov qab ntau dua. Qhov tseeb scan-rau-STL cov zis yog li ntawd tsis yog ib qho kev ua haujlwm xwb. Nws yog kev lag luam - tseem ceeb ntawm kev tsim khoom kom zoo dua.
Qhov Kev txwv ntawm Kev Cai 2D Ko Taw Cov Ntaub Ntawv hauv Orthotic Manufacturing
Kev ntsuam xyuas ko taw ib txwm nyob ntawm 2D hneev taw, siab mats, ntsuas phau ntawv, plaster casts, lossis laser scanning yooj yim. Cov txheej txheem no tuaj yeem muab cov ntaub ntawv muaj txiaj ntsig zoo, tab sis lawv feem ntau tsis muaj cov ncauj lus qhia ntxaws ntxaws uas xav tau rau kev tsim cov khoom siv digital.
Ib lub txaj siab tuaj yeem qhia tau tias tus tib neeg sib cuag hauv av li cas. Ib qho 2D hneev taw tuaj yeem pom thaj chaw tiv toj. Kev ntsuas phau ntawv tuaj yeem sau qhov ntev thiab qhov dav. Txawm li cas los xij, tsis muaj ib txoj hauv kev no ib leeg tuaj yeem ntes tus ko taw peb - qauv qauv.
Cov ntaub ntawv ko taw ib txwm tuaj yeem plam:
- Arch qhov siab thiab arch curvature
- Instep qhov siab thiab midfoot ntim
- Heel dav thiab pob taws sib dhos
- Forefoot dav thiab ntiv taw morphology
- Ko taw girth thiab ncig
- Bunion-txog kev sib txawv ntawm cov qauv
- High arch geometry thiab lateral loading nyiam
- Sab laug- txoj cai asymmetry
- Tag nrho 3D nto xav tau rau CAD orthotic tsim
Qhov no yog tshwj xeeb tshaj yog ib qho tseem ceeb rau complex orthotic daim ntaub ntawv. Ib qho kev pab kho bunion yuav tsum muaj kev nkag siab zoo ntawm forefoot shape, toe angle, and medial protrusion. Lub siab arch orthotic kev txhawb nqa yuav tsum muaj qhov siab ntawm qhov siab, arch contour, thiab midfoot geometry. Ib qho kev cai insole yuav tsum muaj qhov sib txuam ntawm cov ntoo, qhov rooj zaum, thiab kev txhawb nqa -zone tsim.
Hauv luv luv, 2D cov ntaub ntawv tsis txaus rau siab - zoo 3D luam tawm orthotics. Cov neeg tsim khoom xav tau qhov tseeb, ua tiav, exportable 3D ko taw qauv.

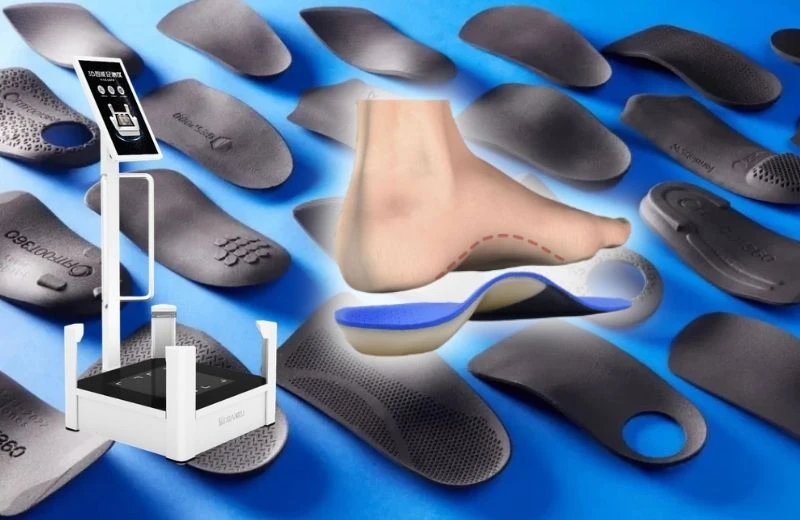

Xianku 3D Foot Scanning: Los ntawm lub cev ko taw mus rau cov qauv luam tawm
Xianku yog tus thawj coj thoob ntiaj teb hauv 3D lub cev meej- kos npe cov ntaub ntawv ua haujlwm cov kev pabcuam, pab kev noj qab haus huv, kev noj qab haus huv, orthopedic, thiab cov koom tes khau hloov pauv tib neeg lub cev rau hauv cov khoom lag luam digital.
Xianku's 3D ko taw scanner siv qib siabInfrared teeb pom kev zoo technologytxhawm rau ntes cov qauv saum npoo ntawm ob txhais taw. Piv nrog rau cov txheej txheem laser scanning lossis lub tshuab siab mats, infrared teeb pom kev zoo muab qhov nrawm dua, yooj yim dua, thiab ntau lawm -cov ntaub ntawv npaj tau txais kev paub.
Lub kaw lus tuaj yeem ua tiav ob -ko taw scanning hauv1 thib obthiab tsim ib daim ntawv qhia kev tshaj lij nyob rau hauv txog5 vib nas this. Nrog± 1 hli precision, nws txhawb siab - ntsuas qhov ntsuas qhov zoo thiab cov qauv digital rau kev txhim kho cov khoom orthotic.
Core technical zoo muaj xws li:
- 1-thib ob scanningrau ob ko taw
- Tsis yog -hu rau infrared qauv teeb ntes
- ± 1 hli precisionrau cov kws tshaj lij- ntsuas qib
- 5-thib ob digital report generation
- 1: 1 tiag 3D puv -ko taw qauv tsim kho
- 30+ cov ntaub ntawv biomechanicalnpog qhov ntev, dav, girth, qhov siab, arch, thiab morphology
- ExportableSTL/OBJ 3D qauv
- Seamless txuas nrog CAD tsim thiab 3D tshuab luam ntawv
Rau 3D luam ntawv orthotics manufacturers, qhov no txhais tau tias lub scanner tsis tsuas yog muab ib daim ntawv qhia kev ntsuas. Nws muab lub hauv paus tsim digital.
Vim li cas 1:1 Tag Nrho -Cov Qauv Ko Taw 3D Zoo dua li Cov Hneev Taw
A 1: 1 tag nrho -ko taw 3D qauv captures qhov tseeb geometry sab nraud ntawm ko taw. Qhov no suav nrog thaj chaw cog qoob loo, arch shape, pob taws qauv, foreffoot profile, ntiv taw thaj tsam, instep qhov siab, thiab tag nrho ntim.
Qhov no txawv heev los ntawm ib tug tiaj tus hneev taw. Ib tug hneev taw tsuas yog qhia kev sib cuag. Ib tug 3D qauv qhia cov duab.
Rau kev tsim khoom orthotic, qhov sib txawv no yog qhov tseem ceeb.
A 1: 1 tag nrho -ko taw 3D qauv pab tsim kom nkag siab:
- Qhov twg yuav tsum tau ntxiv
- Qhov twg yuav xav tau kev nyem nyem
- Yuav ua li cas lub arch yuav tsum sib phim
- Yuav ua li cas pob taws stabilization tuaj yeem tsim
- Seb forefoot dav cuam tshuam rau orthotic haum
- Yuav ua li cas bunion- cuam tshuam qhov sib txawv hloov cov khoom siv
- Yuav ua li cas siab arch geometry yuav tsum coj kev txhawb nqa tsim
- Seb sab laug thiab sab xis ko taw qauv xav tau kev kho sib txawv
Qhov no tso cai rau B2B cov tuam txhab tsim cov khoom lag luam txhim khu kev qha ntau dua -rau -tsim- rau - luam tawm haujlwm.
ACA & AHI Algorithm: Zoo dua Arch Cov Ntaub Ntawv rau Kev Ua Haujlwm Orthotic Design
Arch tsom xam yog ib qho tseem ceeb tshaj plaws ntawm kev cai orthotic tsim. Txawm li cas los xij, ntau cov kab ke ib txwm siv ntau rau ntawm thaj chaw sib cuag los faib cov koov. Qhov no tuaj yeem ua rau muaj kev ua yuam kev, tshwj xeeb tshaj yog nyob rau hauv cov neeg siv nrog kev hais lus hnyav, supination, siab arches, lossis ko taw txawv txav.
Xianku tus kheej -tsimACA & AHI algorithmmuab txoj kev ntsuas arch ntau dua.
ACA sawv rauArch Conduction Angle.
AHI sawv rauArch Qhov siab Index.
CovACA & AHI algorithmua ke:
- 3D daim ntawv qhia -ko taw qauv cov ntaub ntawv
- Arch qhov siab index
- Arch morphology
- Medial longitudinal arch qauv
- Heel-rau-midfoot spatial kev sib raug zoo
- Ko taw kev nyiam nyiam tshaj qhov chaw sib cuag yooj yim
Rau cov tuam txhab orthotic, qhov no yog qhov tseem ceeb vim tias kev faib cov koov muaj feem cuam tshuam rau kev tsim qauv. Kev txhawb nqa arch siab xav tau cov qauv sib txawv los ntawm kev txhawb nqa qis. Ib tug ko taw nrog sab hauv lossis sab nraud sib txawv yuav xav tau kev sib txawv stabilization logic. Yog tias cov ntaub ntawv koov tsis raug, kev tsim orthotic kuj yuav tsis raug.
Los ntawm kev sib koom ua ke 3D tag nrho- qauv ko taw nrog ACA & AHI-raws li kev tsom xam, Xianku pab cov tuam txhab txav los ntawm cov qauv qauv mus rau ntau tus kheej tsim qauv tsim.
30+ Biomechanical Datasets rau Orthotic Product Development
Kev tsim khoom-npaj orthotic workflow xav tau ntau tshaj li cov qauv ntaub ntawv. Nws tseem xav tau cov ntaub ntawv ntsuas kev ntsuas uas tuaj yeem coj cov kev cai tsim, kev hloov kho tsis zoo, thiab kev tswj kom zoo.
Xianku qhov system outputs30+ cov ntaub ntawv biomechanical, suav nrog:
- Taw ntev
- Taw dav
- Forefoot dav
- Pob luj taws dav
- Pob luj
- ko taw ncig
- Instep qhov siab
- Arch qhov siab
- Arch hom
- ntiv taw qauv
- Heel alignment reference
- Sab laug- txoj cai asymmetry
- Foot morphology classification
- Kev cai insole tsim siv siv
- Orthotic khoom tsim siv siv
- 3D luam ntawv ntau lawm cov ntaub ntawv
Rau cov tuam txhab B2B, cov ntaub ntawv no tuaj yeem pab kho tus qauv kev hloov kho thaum tseem khaws cov kev sib txawv ntawm tus kheej. Qhov no yog ib qho tseem ceeb rau scaling ntau lawm tsis poob tus kheej.
STL/OBJ 3D Qauv: Txuas cov ntaub ntawv luam theej duab nrog CAD thiab 3D Printing
Xianku lub scanner tuaj yeem tso tawmSTL/OBJ 3D qauv, tso cai rau cov neeg koom tes los txuas ko taw scanning cov ntaub ntawv ncaj qha nrog downstream tsim thiab tsim tshuab.
Cov ntaub ntawv STL tshwj xeeb tshaj yog muaj txiaj ntsig rau:
- 3D luam ntawv orthotic insoles
- High arch txhawb pab kiag li lawm
- Bunion kho orthotics
- Heel khob thiab pob taws stabilization khoom
- Kev cai khau ntev
- Cov khau haum tsom xam
- Orthopedic khoom prototyping
- CAD-raws li kev hloov kho orthotic
OBJ cov ntaub ntawv yuav pab tau thaum:
- Kev ntxhib los mos los yog nplua nuj cov ntaub ntawv saum npoo yog xav tau
- Visualization yog ib feem ntawm cov neeg siv khoom
- Tus qauv yog siv nyob rau hauv 3D kev nthuav qhia systems
- Cov koom tes xav tau kev sib raug zoo ntxiv rau kev tsim platforms
Ua ke, STL / OBJ export muab kev yooj yim dua rau ntau qhov chaw sib txawv. Cov neeg tsim khoom tuaj yeem xa cov ntaub ntawv mus rau hauv CAD software, hloov kho qhov chaw txhawb nqa, tsim kho cov qauv, thiab npaj cov qauv rau 3D luam ntawv.
Piv txwv daim ntawv thov: Bunion Orthotics thiab High Arch Orthotics
1. STL Export rau Bunion Orthotic Devices
Bunion-cov khoom lag luam ntsig txog yuav tsum muaj qhov tseeb forefoot geometry. Ib nkawm khau yooj yim tsis txaus. Cov neeg tsim qauv yuav tsum nkag siab txog qhov nruab nrab ntawm qhov nruab nrab, qhov dav ntawm lub hauv ntej, ntiv taw sib dhos, thiab kev sib raug zoo ntawm cov ntiv taw loj thiab thaj tsam metatarsal.
Xianku tus qauv 3D tuaj yeem txhawb nqa:
- Forefoot morphology ntsuam xyuas
- Toe region modeling
- Bunion protrusion siv
- Custom device haum txhim kho
- Zoo dua CAD tsim rau hauv zos nyem lossis kho kev txhawb nqa
2. STL Export rau High Arch Orthotic Supports
High arch taw feem ntau yuav tsum tau ceev faj ntxiv thiab tsim cushioning. Yog tias qhov kev txhawb nqa koov qis dhau, nws yuav ua tsis tau zoo. Yog tias nruj heev, nws yuav tsis xis nyob.
Xianku's 3D cov ntaub ntawv tuaj yeem pab cov tuam txhab ntsuas:
- Arch qhov siab
- Arch curvature
- Instep ntim
- Lateral loading nyiam
- Heel seating xav tau
- Personalized arch support geometry
Qhov no tso cai rau siab arch orthotics tsim los nrog kev sib npaug zoo ntawm kev txhawb nqa, kev nplij siab, thiab kev ruaj ntseg.
Luam theej duab-rau-Print Workflow rau 3D Printed Orthotics
Ib tug raug Xianku-powered workflow rau B2B orthotic customization yuav muaj xws li:
Ko taw scanning
Tus neeg siv ua tiav qhov tsis yog -hu rau 1- thib ob scan thib ob.
Cov ntawv tshaj tawm digital
Lub kaw lus tsim ib daim ntawv qhia nyob rau hauv li 5 vib nas this nrog ± 1mm precision.
3D qauv reconstruction
Lub scanner tsim 1: 1 tiag 3D puv -ko taw qauv.
Biomechanical tsom xam
ACA & AHI algorithm thiab 30+ biomechanical datasets txhawb kev ntsuas ko taw.
STL/OBJ qauv export
3D qauv yog xa tawm rau CAD tsim lossis siv ntau lawm.
Orthotic tsim
Cov neeg tsim qauv hloov kho thaj chaw txhawb nqa, thaj chaw nyem, kho cov qauv, thiab cov khoom geometry.
3D luam ntawv
Cov khoom siv orthotic customized yog luam tawm siv cov ntaub ntawv tsim nyog thiab tshaj tawm - cov txheej txheem ua.
Haum thiab ua raws- nce
Tus neeg siv tau txais kev kho tus kheej ntau dua orthotic raws li cov ntaub ntawv ko taw tiag tiag.
Qhov kev kaw no -loop workflow pab cov tuam txhab lag luam txo qis kev ua haujlwm ntawm phau ntawv, txhim kho kev tsim qauv zoo ib yam, thiab tsim cov kev pab cuam kho kom haum xeeb.
3D Foot Scanning vs Traditional Orthotic Data Collection
|
Kev ntsuam xyuas cheeb tsam |
Ib txwm 2D / Siab Mat |
Xianku 3D Structured Light Modeling |
|
Cov ntaub ntawv ntes |
Tiv tauj cheeb tsam los yog daim ntawv qhia siab |
Tag nrho 3D ko taw qauv |
|
Luam theej duab ceev |
Nws txawv los ntawm txoj kev |
1-thib ob scanning |
|
Qhia Ceev |
Phau ntawv los yog qhov system - nyob ntawm |
Txog 5 vib nas this |
|
Qhov tseeb |
Kev ntsuas cov qauv txwv |
± 1 hli precision |
|
Arch Evaluation |
Feem ntau thaj tsam -raws li |
ACA & AHI algorithm |
|
Cov ntaub ntawv tso zis |
2D duab lossis daim ntawv qhia yooj yim |
30+ cov ntaub ntawv biomechanical |
|
Qauv Export |
Txwv los yog tsis muaj |
STL/OBJ 3D qauv |
|
Kev tsim khoom siv |
Yuav tsum tau txhais lus txhais lus |
CAD thiab 3D luam ntawv npaj txhij |
|
Kev siv zoo tshaj plaws |
Kev ntsuam xyuas yooj yim |
Kev cai orthotics thiab digital ntau lawm |
Qhov tseem ceeb sib txawv yog tias Xianku lub kaw lus tsim cov khoom tsim tawm -npaj cov khoom muaj nqis, tsis yog kev ntsuas kev pom.
Q&A: Cov Lus Nug Feem Ntau Txog STL Cov Ntaub Ntawv Hom Export rau 3D Printed Orthotics
Yuav ua li cas 3D ko taw scan pab kev tsim khoom orthotic?
Ib tug 3D ko taw scan captures ib tug tiag tiag 1: 1 tus qauv digital ntawm ko taw. Cov qauv no tuaj yeem raug xa tawm raws liSTL/OBJ 3D qauvthiab siv hauv CAD software lossis 3D printing workflows los tsim kho orthotics raws li tus qauv ko taw tiag tiag.
Vim li cas STL cov ntaub ntawv xa tawm tseem ceeb rau 3D luam tawm orthotics?
STL cov ntaub ntawv xa tawm tso cai rau ko taw scan cov ntaub ntawv txav ncaj qha mus rau hauv 3D luam ntawv ntau lawm saw. Nws pab cov tuam txhab txo qis kev tsim qauv, txhim kho qhov tseeb, thiab tsim cov khoom orthotic nyob ib puag ncig tus neeg siv lub cev tiag tiag.
Puas yog 2D hneev taw txaus rau kev cai tsim orthotic?
2D hneev taw tuaj yeem muab cov ntaub ntawv tiv tauj yooj yim, tab sis nws tsis tuaj yeem ntes qhov siab ntawm qhov siab, qhov ntim ntim, pob luj taws, ko taw girth, lossis ua tiav ko taw morphology. Rau 3D luam tawm orthotics, tag nrho 3D cov ntaub ntawv muaj txiaj ntsig zoo dua.
ACA & AHI algorithm yog dab tsi?
CovACA & AHI algorithmyog Xianku tus kheej -tsim arch assessment method. Nws ua ke Arch Conduction Angle, Arch Height Index, 3D tag nrho -ko taw qauv, thiab arch morphology los muab kev ntsuam xyuas arch ntau txhim khu kev qha dua li thaj tsam ib txwm- raws li txoj hauv kev.
Cov ntaub ntawv STL puas tuaj yeem siv rau bunion orthotics?
Yog lawm. STL cov ntaub ntawv tuaj yeem txhawb nqa CAD tsim rau bunion-txog cov khoom siv orthotic los ntawm kev muab cov duab kos rau ntawm taw taw, ntiv taw thaj tsam qauv, thiab cov ntaub ntawv hauv cheeb tsam.
Cov ntaub ntawv STL puas tuaj yeem siv rau qhov siab arch orthotics?
Yog lawm. STL cov ntaub ntawv muaj txiaj ntsig zoo rau kev txhawb nqa siab arch orthotic vim tias lawv muab qhov tseeb ntawm qhov siab, curvature, instep ntim, thiab tag nrho -ko taw geometry rau tus kheej kev txhawb nqa tsim.
Xianku scanning workflow ceev npaum li cas?
Xianku lub scanner tuaj yeem ua tiav ob-ko taw1-thib ob scanningthiab tsim ib daim ntawv qhia kev tshaj lij nyob rau hauv txog5 vib nas this, pab B2B cov neeg koom tes txhim kho kev ua tau zoo hauv siab - ntim kev hloov pauv ib puag ncig.
Thaum kawg Takeaway: Zoo Orthotics Pib nrog cov ntaub ntawv 3D zoo dua
Rau 3D luam ntawv orthotics manufacturers, customization zoo nyob ntawm qhov zoo ntawm cov ntaub ntawv qub ko taw. Daim ntawv qhia chaw tiaj tus lossis daim ntawv qhia siab yuav muaj txiaj ntsig rau kev siv, tab sis nws tsis tuaj yeem hloov qhov ua tiav 1: 1 tag nrho -ko taw 3D qauv.
STL cov ntaub ntawv format export rau 3D luam orthoticsua kom muaj kev sib txuas ncaj qha ntawm kev ntsuam xyuas ko taw kev noj qab haus huv thiab kev tsim khoom digital. Nrog XiankuInfrared teeb pom kev zoo technology, 1-thib ob scanning, ± 1 hli precision, tswvACA & AHI algorithm, 30+ cov ntaub ntawv biomechanical, thiab exportableSTL/OBJ 3D qauv, B2B cov neeg koom tes tuaj yeem tsim kom muaj txiaj ntsig zoo, ua kom muaj peev xwm, thiab ua haujlwm ntawm tus kheej orthotic ntau lawm.
Los ntawm kev kho bunion txhawb rau siab arch orthotics, los ntawm kev cai insoles mus rau tus kheej cov khau looj plab hlaub, lub neej yav tom ntej ntawm orthotic manufacturing yog cov ntaub ntawv -tsav, 3D-enabled, thiab sib sib zog nqus tus kheej.
