1 Kev Taw Qhia
Cov khau tshwj xeeb yog hais txog cov khau khau uas tsim los rau cov pab pawg tshwj xeeb lossis cov xwm txheej, xws li khau kho orthopedic, khau tiv thaiv kab mob ntshav qab zib, khau tiaj tus / siab arch txhawb nqa khau, kho cov kis las ua haujlwm khau, thiab 3D luam tawm tus kheej insoles. Tsis zoo li tus qauv loj- cov khau tsim, cov khau tshwj xeeb yuav tsum muaj kev sib txuam nruj ntawm cov khau kawg thiab tus kheej taw, nrog rau kev hloov kho kom haum rau ko taw kev noj qab haus huv xws li ko taw tiaj tus, hallux valgus, pob taws valgus / varus, thiab plantar fasciitis.
Rau lub sijhawm ntev, kev hloov kho ntawm cov khau tshwj xeeb tso siab rau kev ntsuas kev ntsuas, plaster ko taw pwm, thiab kev hloov kho empirical, ua rau muaj teeb meem xws li kev mus ntev, tsis tshua muaj siab, tsis ruaj khov, thiab cov nqi siab. Nrog kev nce ntawm 3D kev paub, cov ntaub ntawv loj, thiab AI thev naus laus zis, txoj kev hloov kho ntawm cov khau tshwj xeeb tau hloov pauv los ntawm kev paub dhau los - tau tsav mus rau cov ntaub ntawv - tsav, thiab los ntawm kev cob qhia -style mus rau cov khoom ntse ntse. Qhov kev rov hais dua no tsis yog tsuas yog txhim kho kev ua tau zoo thiab qhov tseeb tab sis kuj nthuav dav daim ntawv thov ntawm cov khau tshwj xeeb, ua kom loj - nplai tus kheej hloov kho hauv cov khw muag khau, cov tsev kho mob, cov tsev kho mob, thiab cov npe kis las.
Daim ntawv no systematically combs peb theem ntawm customization txoj kev rau cov khau tshwj xeeb, sib piv cov ntsiab lus qhia ntawm cov kev sib txawv txoj kev, thiab soj ntsuam daim ntawv thov nqi ntawm advanced 3D ko taw scanning khoom sawv cev los ntawm Xianku nyob rau hauv lub tshiab customization system.
2 Peb theem nyob rau hauv Iteration ntawm Tshwj xeeb khau Customization
2.1 Traditional Manualization Customization (Ua ntej 2010)
Txoj kev hloov kho sai tshaj plaws ntawm cov khau tshwj xeeb yog phau ntawv qhia tag nrho, feem ntau yog siv hauv cov chaw ua haujlwm khau khiab thiab cov tsev me me - nplai orthopedic.
Cov txheej txheem tseem ceeb
- Kev ntsuas phau ntawv nrog daim kab xev ntsuas, calipers, thiab ko taw impression boards
- Plaster foot pwm tig thiab phau ntawv hloov kho
- Kev txiav txim siab txog qhov teeb meem ntawm ko taw los ntawm cov khau los yog kws kho mob
- Handmade khau kawg txiav thiab tawv xaws
Qhov zoo
- Kev hloov pauv siab rau cov duab taw tshwj xeeb heev
- Tsawg pib cov cuab yeej siv peev
- Haum rau me me -batch, siab - txiav txim customization
Qhov tsis zoo
- Lub voj voog ntev: kev ntsuas rau cov khoom tiav feem ntau siv sijhawm 7-15 hnub
- Tsawg precision: tib neeg kev ua yuam kev ntawm 3-5 mm yog ntau
- Tsis zoo sib xws: cov neeg ua haujlwm sib txawv ua rau muaj qhov sib txawv haum
- Cov ntaub ntawv nyuaj archiving thiab kev hloov kho theem nrab
- Tus nqi zog ua haujlwm siab thiab nyuaj hauv kev nce qib loj -
2.2 Ib nrab-Automated Mechanical Customization (2010–2018)
Nrog rau qhov nrov ntawm CNC tshuab cov cuab yeej thiab cov cuab yeej siv laser scanning, kev hloov kho ntawm cov khau tshwj xeeb tau nkag mus rau theem ib nrab -automated.
Cov txheej txheem tseem ceeb
- Laser lossis sojntsuam- hom ntsuas ko taw
- Khoos phib tawj-aid khau xeem tsim (CAD)
- CNC machining ntawm khau kav ntev
- Semi-automated txiav thiab xaws
Qhov zoo
- Txhim kho precision piv nrog kev tuav tes ua haujlwm
- Shortened ntau lawm voj voog mus rau 3-7 hnub
- Standardized khau kawg cov ntaub ntawv rau ib tug tej yam
Qhov tsis zoo
- Lub sijhawm scan ntev (feem ntau ntau dua 20 vib nas this)
- Cov ntaub ntawv tsis tiav: feem ntau txwv rau cov ntaub ntawv ib leeg, tsis muaj tag nrho 3D tus qauv ko taw
- Kev ruaj ntseg tsis zoo, yooj yim rau kev cuam tshuam los ntawm ib puag ncig thiab kev ua haujlwm
- Laser muaj peev xwm ua rau pom kev puas tsuaj
- Cov cuab yeej siv siab thiab kev ua haujlwm nyuaj
2.3 Intelligent Digital Customization (2019-Tam sim no)
Tsav los ntawm 3D infrared teeb pom kev zoo, AI algorithms, thiab 3D tshuab luam ntawv, kev hloov kho ntawm cov khau tshwj xeeb tau nkag mus rau lub sijhawm ntawmib- thib ob scanning, tsib- thib ob tshaj tawm, thiab digital tag nrho - saws customization.
Cov txheej txheem tseem ceeb
- 1-thib ob uas tsis sib cuag 3D infrared teeb pom kev zoo
- Tsis siv neeg tsim cov qauv 3D ko taw thiab 30+ cov ntaub ntawv taw qhia
- AI tsis siv neeg ntsuas kev noj qab haus huv ntawm ko taw (paj taw, hallux valgus, pob taws valgus, thiab lwm yam)
- Digital foot health archive thiab ntse tswv yim pom zoo
- Cov ntaub ntawv txuas ncaj qha rau 3D luam ntawv lossis cov khau digital kawg
- Kev tsim sai sai ntawm customized insoles lossis ua haujlwm khau
Core Zoo
- millimeter{0}}theem precision (± 1 hli)
- Ultra-kev ua haujlwm siab: 1-thib ob scanning, 5-thib ob daim ntawv tshaj tawm
- Tag nrho 3D tus qauv taw qhia, cov ntaub ntawv dav dav
- Tsis yog -kev sib cuag, muaj kev nyab xeeb thiab tsis muaj mob, tsis muaj kev pheej hmoo pom
- Kev txawj ntse sib cuam tshuam, kev ua haujlwm yooj yim, haum rau kev lag luam scenarios
- Zoo meej tub lag luam keeb kwm yav dhau thiab cov ntaub ntawv tswj hwm qhov system
3 Sib piv cov txheej txheem Customization txawv rau Cov Khoom Tshwj Xeeb Footwear
Cov lus hauv qab no sib piv cov cim tseem ceeb ntawm peb tiam ntawm kev hloov kho, qhia txog kev txhim kho leapfrog ntawm 3D ntse scanning customization.
|
Cov khoom sib piv |
Traditional phau ntawv Customization |
Ib nrab -Automated Mechanical Customization |
3D Intelligent Digital Customization (Xianku XK-B002) |
|
Kev ntsuas / ntsuas |
Kev ntsuas kev ntsuas + plaster pwm |
Laser / sojntsuam scanning |
3D infrared teeb pom kev zoo |
|
Lub Sijhawm Tshawb Fawb |
5–10 feeb |
20 vib nas this lossis ntau dua |
Txog 1 vib nas this |
|
Tshaj Tawm Txog Lub Sij Hawm |
Ob peb teev |
Ob peb feeb |
5 vib nas this |
|
Foot Model Form |
Ib qho kev xav / kev kos duab yooj yim |
Ib nrab qauv |
1: 1 tag nrho tiag 3D ko taw qauv |
|
Kev ntsuas qhov tseeb |
3-5 mm yuam kev |
Common precision |
Qib millimeter (± 1mm) |
|
Cov ntaub ntawv ntim |
5-8 qhov loj me |
10-15 qhov ntev |
30+ cov ntaub ntawv tshaj lij ko taw |
|
Kev nyab xeeb |
Muaj kev nyab xeeb |
Laser tuaj yeem ua rau pom kev puas tsuaj |
Tsis yog -kev sib cuag, nyab xeeb thiab tsis muaj mob |
|
Kev Soj Ntsuam Kev Noj Qab Haus Huv Ko Taw |
Kev txiav txim empirical |
Kev txiav txim siab |
Kev ntsuam xyuas AI ntse |
|
Cov lus pom zoo |
Tsis muaj |
Tsis muaj |
Kev cai insoles / khau pom zoo |
|
Cov ntaub ntawv Archiving |
Phau ntawv cov ntaub ntawv |
Yooj yim cia |
Digital huab archive |
|
Kev Tswj Lag Luam |
Tsis muaj |
Basic |
Ua kom tiav keeb kwm yav dhau |
|
Daim ntawv thov Scenario |
Kev cob qhia me me |
Factories / tsev kawm ntawv |
Cov khw, tsev kho mob, khw, gyms |
|
Hom Cycle |
7-15 hnub |
3-7 hnub |
1-3 hnub |
4 Core Breakthroughs of 3D Intelligent Scanning in Specialty Footwear Customization

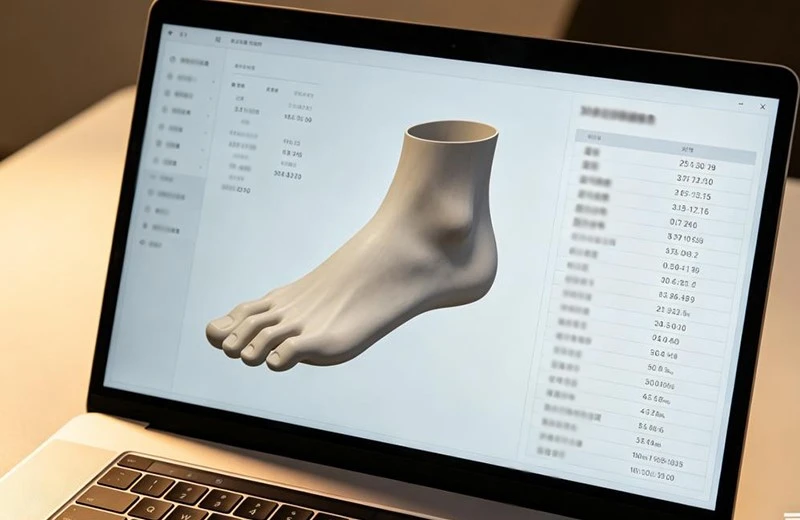

4.1 Tag nrho -Dimensional Foot Data Acquisition
Xianku 3D Foot Scanner XK-B002 tuaj yeem sau ntau dua 30 yam ntawm cov ntaub ntawv ko taw hauv ib qho scan, suav nrog:
- Length: ko taw ntev, pob taws - nruab nrab ntev, thawj metatarsal ntev
- Dav: ko taw dav, pob taws -center width, metatarsal width
- Qhov siab: instep qhov siab, medial malleolus qhov siab, thawj metatarsal sib koom qhov siab
- Circumference: ntiv taw ncig, ntiv taw ncig, pob taws ncig, pob luj taws ncig
- Arch: medial arch length / qhov siab, arch pib / ncov / kawg txoj haujlwm
- Kev ntsuas kev noj qab haus huv: arch index, hallux valgus lub kaum sab xis, pob taws inclination lub kaum sab xis
Cov ntaub ntawv no muab tag nrho -cov ntaub ntawv hauv paus rau kev hloov kho ntawm orthopedic insoles, khau ua haujlwm, thiab khau kho kho mob.
4.2 AI-Kev Ntsuam Xyuas Kev Noj Qab Haus Huv Hauv Paus
Cov cuab yeej tuaj yeem txheeb xyuas thiab ntsuas cov teeb meem hauv ko taw xws li ko taw tiaj tus, siab arches, hallux valgus, pob taws valgus / varus, thiab mob metatarsal, thiab tsim cov ntawv qhia kev noj qab haus huv ntawm ko taw thiab cov lus qhia txog kev kho mob. Qhov no ua rau cov neeg ua haujlwm tsis yog -cov neeg ua haujlwm tshaj lij hauv cov khw muag khau thiab cov khw muag khoom los muab cov kev pabcuam kev pabcuam kev noj qab haus huv ntawm ko taw, nthuav dav kev pabcuam tshwj xeeb ntawm cov khau khau.

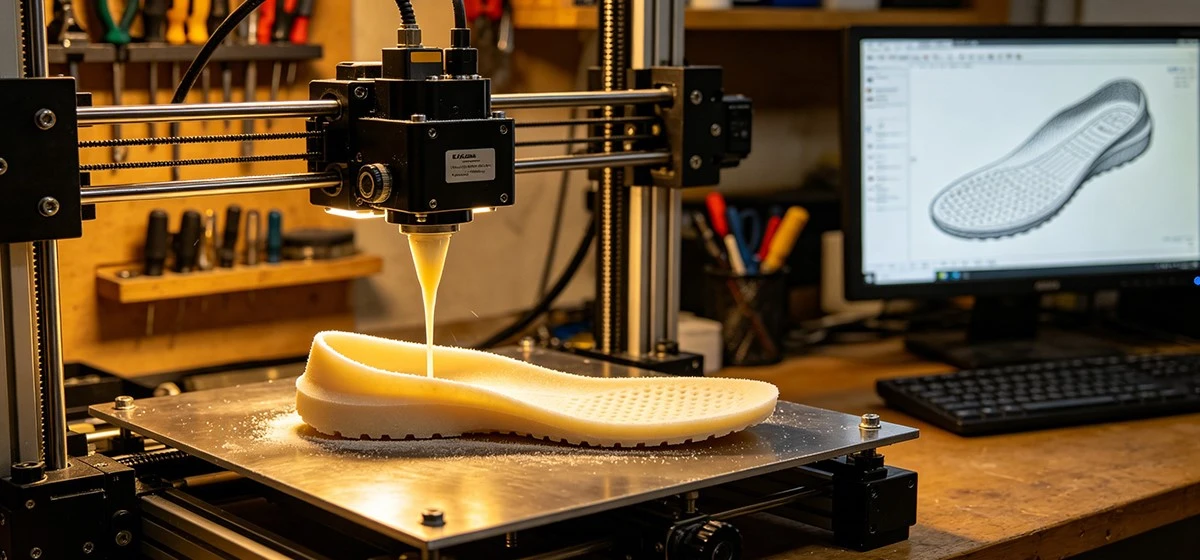

4.3 Seamless Txuas nrog 3D Printing thiab Cov Khaub Ncaws Digital
Tus qauv 3D ko taw thiab cov ntaub ntawv tau txais los ntawm kev tshuaj ntsuam tuaj yeem raug xa ncaj qha mus rau hauv 3D luam ntawv cov cuab yeej los tsim cov insoles tus kheej, lossis rau hauv cov khau digital kawg rau cov khau nrawm kawg tsim thiab ntau lawm. Qhov no paub txog tag nrho - txuas digitalization los ntawmko taw scanning → cov ntaub ntawv tsom xam → tswv yim pom zoo → khoom tsim, thiab shortens lub voj voog customization los ntawm lub lis piam mus rau 1-3 hnub.
4.4 Dav Adaptability rau ntau yam xwm txheej
3D ntse scanners tsis txwv rau cov chaw tsim khoom lossis chaw kho mob, tab sis tuaj yeem siv dav hauv:
- Cov khw muag khau thiab chains khau lag luam
- Cov chaw ua si thiab qoj
- Rehabilitation thiab ko taw chaw zov me nyuam
- Orthopedic cov tsev kho mob
- Cov khw muag khoom thiab cov khw muag khoom muaj kev paub
Qhov xwm txheej no nthuav dav ua rau cov khau tshwj xeeb kho kom haum rau cov pej xeem, tsis yog txwv rau qee tus neeg uas muaj kev xav tau tshwj xeeb.
5 Kev lag luam tus nqi thiab yav tom ntej Trends
5.1 Kev Lag Luam Tus Nqi
- Txhim khu kev hloov pauv kev muag khoom: Cov khw muag khau tuaj yeem siv 3D scanning rau kev ua lag luam, nyiam cov neeg siv khoom thiab txhim kho kev hloov pauv.
- Txhim kho cov tshuaj kho kom rov zoo: Muab cov ntaub ntawv raug txhawb rau kev kho ko taw thiab txhim kho cov txiaj ntsig ntawm kev kho kom rov zoo.
- Txo cov nqi thiab nce efficiency: Txo qhov yuam kev ntawm phau ntawv thiab rov ua haujlwm dua, thiab txo qhov pib rau kev tsim khoom.
- Daim ntawv thov cov ntaub ntawv loj: Ua kom cov ko taw zoo li cov ntaub ntawv loj los txhim kho cov khoom tsim thiab cov qauv kev lag luam.
5.2 Yav Tom Ntej Trends
- Kev sib sib zog nqus ntawm AI thiab kev hloov kho: AI yuav cia li tsim cov kev kho tus kheej thiab cov phiaj xwm tsim khau.
- Kev siv dav dua ntawm 3D luam ntawv: Tag nrho- khau 3D luam ntawv yuav dhau los ua qhov tseem ceeb, ua tiav kev hloov kho tus kheej tiag tiag.
- Mobile thiab portable scanning: Miniaturized scanners yuav nkag mus rau hauv tsev, paub txog lub tsev -raws li kev saib xyuas kev noj qab haus huv ko taw thiab cov kev pabcuam kho kom haum.
- Hla -kev koom ua ke ntawm ciam teb: Cov ntaub ntawv kho mob ko taw yuav txuas nrog kev noj qab haus huv ntawm tus txha nqaj qaum, kev ntsuas lub cev, thiab kev noj qab haus huv kis las los tsim kom muaj tag nrho - lub cev noj qab haus huv ecosystem.
6 Kev xaus
Txoj kev hloov kho ntawm cov khau tshwj xeeb tau ua tiav peb qhov tseem ceeb ntawm phau ntawv mus rau kev siv tshuab thiab tom qab ntawd mus rau kev txawj ntse digital. Txhua iteration yog tsav los ntawm kev kho dua tshiab ntawm kev ntsuas technology thiab cov ntaub ntawv ua muaj peev xwm. Qhov tshwm sim ntawm 3D infrared teeb tsa lub teeb ko taw scanner sawv cev los ntawm Xianku XK-B002 tau paub txog qhov dhia los ntawmkev customizationraucov ntaub ntawv customization, nrog rau kev txhim kho tseem ceeb hauv kev ceev, precision, kev nyab xeeb, thiab kev hloov pauv ntawm qhov xwm txheej.
Nyob rau hauv lub neej yav tom ntej, nrog rau kev txhim kho ntxiv ntawm 3D thev naus laus zis, AI, thiab 3D luam ntawv, kev hloov kho cov khau tshwj xeeb yuav ntse dua, nrov, thiab meej, ua kom xis nyob, noj qab nyob zoo, thiab khau tus kheej ntau dua - hnav kev paub rau cov neeg siv khoom thoob ntiaj teb.
