Tau ntau pua xyoo, kev ntsuam xyuas ko taw tso siab rau tus kws kho mob lub qhov muag. Txawm hais tias kev kho mob tseem tsis muaj nuj nqis, kev tshawb fawb pom tau tias qhov kev ntsuam xyuas pom ib leeg tsis nco cov ntaub ntawv tseem ceeb. Tsab ntawv xov xwm no tshawb xyuas seb 3D scanning thev naus laus zis li cas thiaj li ntsuas qhov muag tsis pom, ua kom muaj pov thawj-raws li kev coj ua ntawm podiatry.
Subjectivity teeb meem nyob rau hauv kev ntsuam xyuas ib txwm
Thaum ob tus kws kho mob ntsuas tib tus neeg mob, lawv cov lus xaus feem ntau sib txawv. Cov kev tshawb fawb qhia tau hais tias inter- ntsuas kev cia siab rau qhov kev ntsuam xyuas qhov muag pom qhov txawv ntawm 0.4 txog 0.7 (qhov twg 1.0 yog qhov kev pom zoo zoo). Qhov kev hloov pauv no muaj qhov cuam tshuam tseem ceeb hauv kev kho mob:
| Kev ntsuam xyuas cheeb tsam | Visual Reliability | Clinical Impact |
|---|---|---|
| Flat foot classification | Nruab nrab | Kev kho mob sib txawv |
| Pob luj taws alignment | Tsawg | Kev tshaj tawm orthotic tsis raug |
| Arch qhov siab kwv yees | Tsawg | Cov qib kev txhawb nqa tsis sib haum |
| Hallux valgus staging | Nruab nrab | ncua kev xa mus rau kev phais |
Qhov ntsuas qhov ntsuas qhov sib txawvyog tib yam hais txog. Thaum lub sij hawm qhov teeb meem pom ntawm qhov muag liab qab, nws tau tsim ntau xyoo:
| Qhov xwm txheej | Visual Detection Threshold | Xianku Detection Threshold |
|---|---|---|
| Pav ko taw kev loj hlob | 5mm arch qhov siab hloov | 0.5mm hloov |
| luj valgus | 4℃pom asymmetry | 0.5℃ntsuas |
| Hallux valgus | 15℃pom kev sib txawv | 1℃thaum ntxov nrhiav pom |
| Leg length tsis sib xws | 10-15mm gait hloov | 1mm ntsuas |
Dab tsi Xianku Quantifies

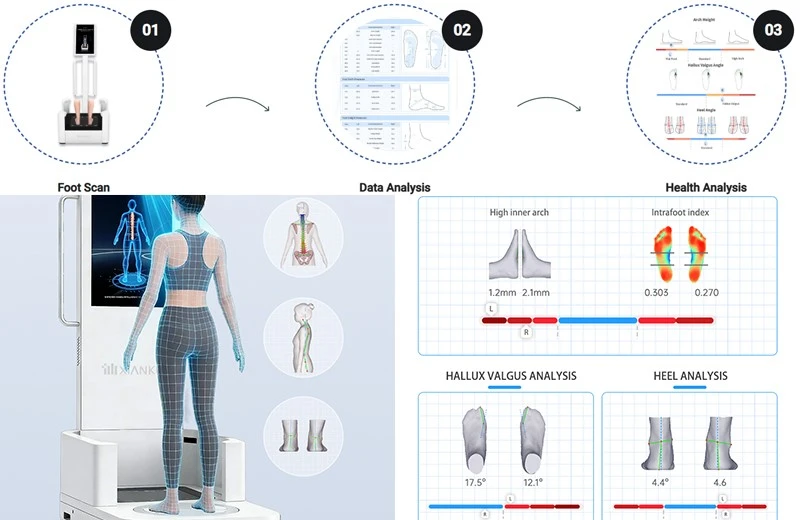

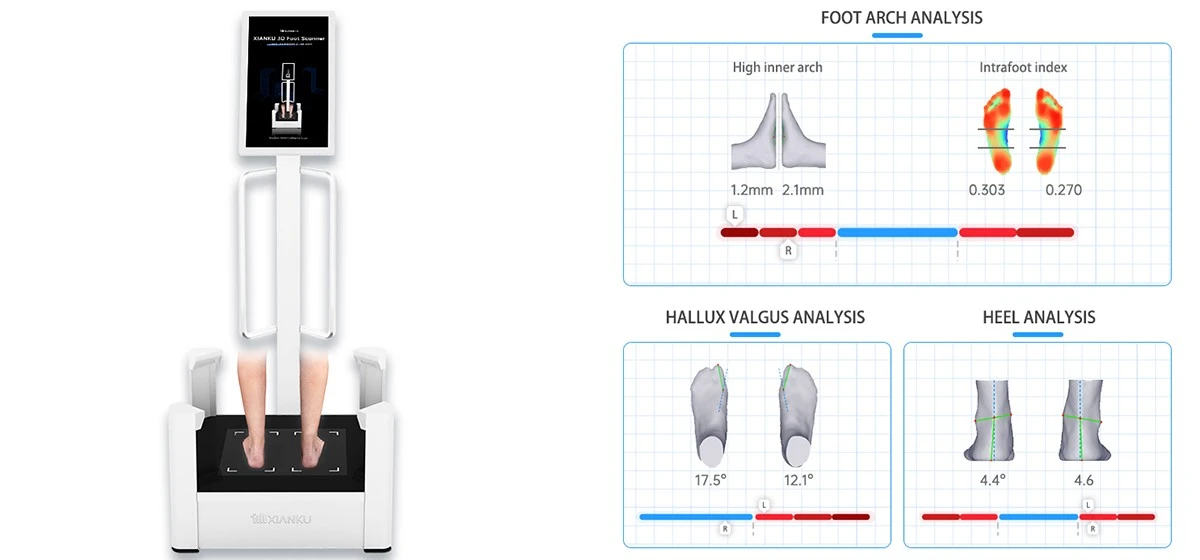

Lub Xianku 3D Foot Scanner ntes lub hom phiaj kev ntsuas hla 30+ tsis:

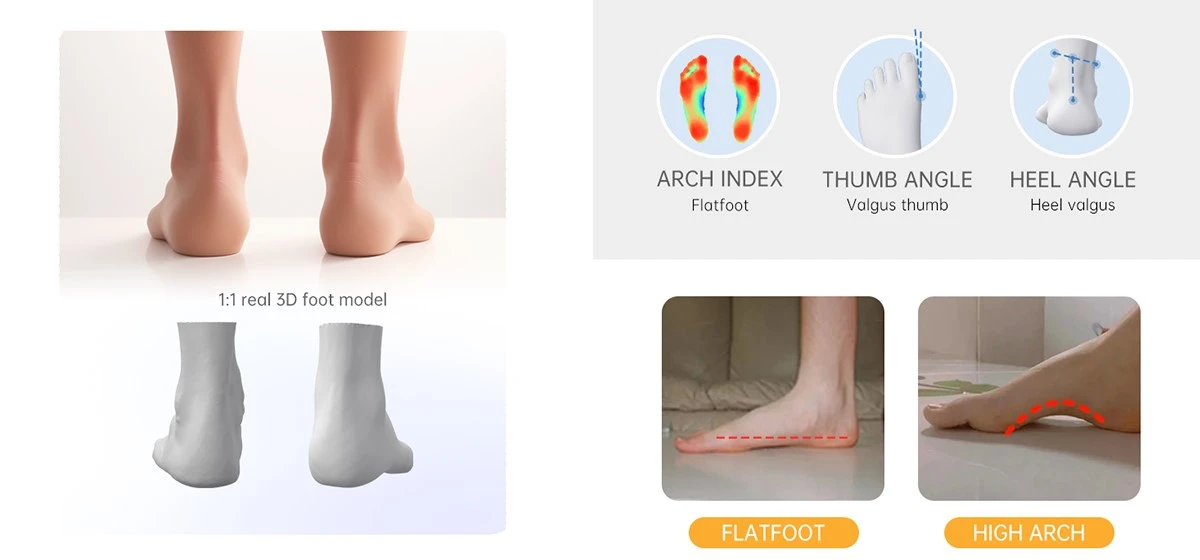

1. Arch Index (AI)
Qhov piv ntawm thaj tsam midfoot rau tag nrho ko taw cheeb tsam (tsis suav cov ntiv taw). Qhov no scientifically validated metric faib hom ko taw nrog precision:

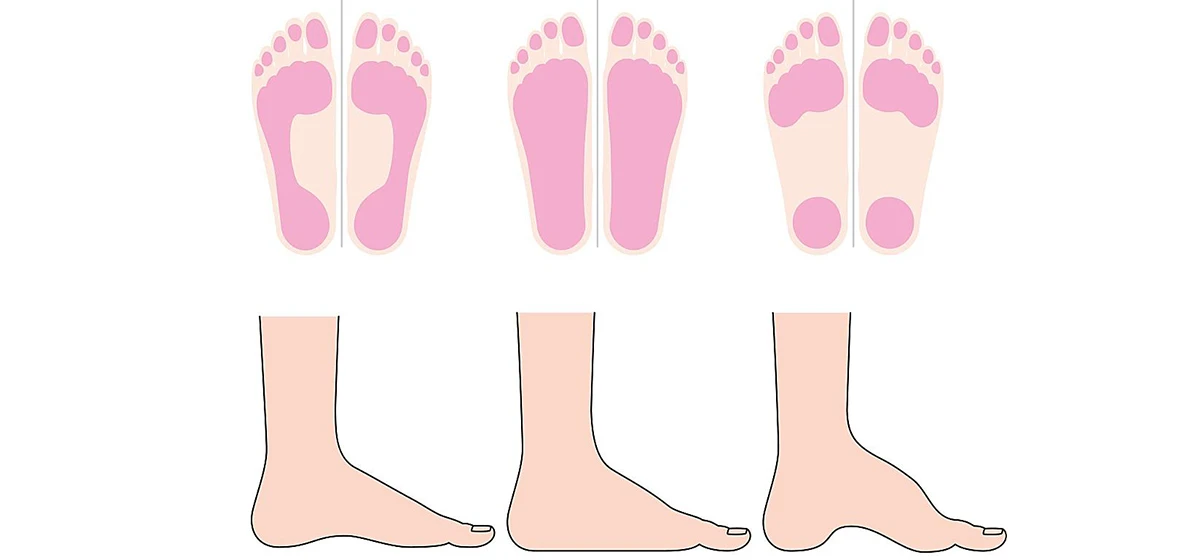

| Arch Index Range | Kev faib tawm | Clinical Implications |
|---|---|---|
| >0.26 | Pes Planus (Plav Foot) | Overpronation txaus ntshai, yuav tsum tau kev txhawb nqa stability |
| 0.21–0.26 | Nruab nrab | Ib txwm biomechanics, kev txhawb nqa |
| <0.21 | Pes Cavus (High Arch) | Txo kev poob siab, yuav tsum tau cushioning |
Kev tshawb fawb luam tawm nyob rau hauv Phau Ntawv Xov Xwm ntawm Foot thiab Pob Tawb Kev Tshawb Fawb qhia tias Arch Index ntsuas los ntawm 3D scanning sib cuam tshuam nrog kev ntsuas hluav taws xob (r> 0.85).
2. Hallux Valgus Angle (HVA)
Lub kaum sab xis ntawm thawj metatarsal thiab proximal phalanx muab lub hom phiaj bunion staging:
| HVA Ntau | Qhov hnyav | Cov lus pom zoo kho mob |
|---|---|---|
| 15-20 ° C | Mob me | Conservative tswj, wider ntiv taw thawv |
| 21 ° -39 ° C | Nruab nrab | Orthotic kev cuam tshuam, xav txog splinting |
| >40 degree | Mob hnyav | Kev sab laj kev phais yuav muaj |
Kev kuaj pom thaum ntxov ntawm cov theem me me ua rau muaj kev cuam tshuam kev saib xyuas ua ntej kev loj hlob mus rau qhov tsim nyog phais.
3. Heel Inclination Angle
Qhov ntsug qaij ntawm lub calcaneus txheeb ze rau qhov hnyav -cov kabmob nto qhia cov ntaub ntawv tseem ceeb ntawm biomechanical:
| Kev ntsuas | Txhais lus | Kev cuam tshuam |
|---|---|---|
| >4℃valgus (sab nraud) | Overpronation | Medial lub hauv caug kev nyuaj siab, plantar fasciitis pheej hmoo |
| >4℃varus (sab hauv) | Oversupination | Lateral pob taws instability, kev nyuaj siab puas |
4. Pob Girth (MTP Joint Circumference)
Circumference around the metatarsal heads determines shoe fit requirements. Variance >5 hli los ntawm tus qauv sizing yuav tsum tau customized kav ntev los tiv thaiv metatarsalgia thiab neuroma tsim.
5. Medial Arch Qhov siab
Peak qhov siab ntawm cov pob txha navicular los ntawm qhov chaw txhawb nqa. Tus nqi<15mm correlate strongly with plantar fasciitis risk.
Kev Tshawb Fawb -Qib Cov Ntaub Ntawv Zoo
Rau cov kws tshawb fawb podiatry thiab cov pov thawj- tsom rau cov kws kho mob, Xianku lub peev xwm ntsuas tau pab:
Longitudinal kev tshawb fawbnrog meej, rov tsim dua ntsuas nyob rau lub sijhawm. 98% intra-chav kawm coefficient kev sib raug zoo ua kom ntseeg tau tias cov kev hloov pauv cuam tshuam txog kev mob tshwm sim ntawm tus neeg mob, tsis yog ntsuas qhov yuam kev.
Ntau-kev tshawb fawbsiv cov txheej txheem ntsuas kev ntsuas yuav tshem tawm qhov kev hloov pauv uas ua rau muaj ntau yam -kev tshawb fawb ntawm qhov chaw siv kev ntsuas phau ntawv.
Cov ntaub ntawv kho mob tshwm simnrog lub hom phiaj ua ntej / tom qab kev sib piv, txhawb kev tshaj tawm thiab nthuav tawm.
Case Study: Kev Tshawb Fawb Kev Sib Koom Tes Muaj Peev Xwm
Lub koom haum tshawb fawb podiatry hauv Netherlands yog siv Xianku scanners thoob plaws plaub qhov chaw kho mob los kawm txog kev loj hlob ntawm ko taw hauv cov tub ntxhais hluas. Tus txheej txheem sau cov ntaub ntawv enables:
- 500+ cov neeg mob nrog kev ntsuas hauv qab
- Peb lub hlis twg ua raws- kuaj xyuas yam tsis muaj hluav taws xob raug
- Correlation ntawm arch index hloov nrog cov tsos mob tshwm sim
- Kev txheeb xyuas qhov muaj feem cuam tshuam rau kev nce qib
Tus thawj coj tshawb fawb sau tseg: "Ua ntej Xianku, ntau- qhov chaw kawm tau cuam tshuam los ntawm inter- ntsuas ntsuas qhov sib txawv. Tam sim no peb paub tias qhov ntsuas qhov ntsuas ntawm 0.28 hauv Amsterdam txhais tau tias tib yam li 0.28 hauv Rotterdam."
Integrating Objective Data rau hauv Clinical Practice
Rau kev xyaum podiatrists, lub hom phiaj kev ntsuas txhim kho txhua yam ntawm kev saib xyuas:
Kev ntseeg siab: Thaum lub scanner lees paub koj qhov kev pom pom, koj ua tiav nrog qhov tseeb. Thaum nws nthuav tawm ib yam dab tsi uas koj nco, koj kawm.
Kev npaj kho mob: Daim ntawv qhia kev ntsuas cov ntawv qhia orthotic -arch Performance index txiav txim siab txog qib kev txhawb nqa, pob taws inclination kaum sab xis qhia cov kev xav tau tshaj tawm.
Kev nce qib kev taug qab: Ua raws li- scans muab lub hom phiaj pov thawj ntawm kev txhim kho, ua pov thawj kev kho mob txuas ntxiv rau cov neeg mob thiab cov neeg them nyiaj.
Kev sib txuas lus ntawm tus neeg mob: Tus lej tsis dag. Thaum cov neeg mob pom lawv lub kaum ntse ntse hallux valgus txo qis los yog lawv lub koov index normalizing, kev ua raws li kev ua tau zoo heev.
Cov pov thawj Base
Xianku's ntsuas algorithms raug cob qhia nyob rau ntau dua 1.3 lab ko taw scans, nrog kev lees paub tsis tu ncua tiv thaiv kub - cov txheej txheem txheem. Cov kev tshawb fawb tseem ceeb validation qhia tau hais tias:
- Cobb angle correlation: r > 0.85 nrog kev ntsuas hluav taws xob rau tus txha caj qaum tsis muaj feem xyuam rau kev ntsuas ko taw
- Inter-Rate Reliability: 98% ICC hla ntau tus neeg ua haujlwm
- Kuaj-retest reliability: ± 0.5mm qhov sib txawv ntawm qhov ntsuas
Xaus
Kev ntsuam xyuas pom yuav ib txwm muaj qhov chaw hauv podiatry- tus kws kho mob paub txog qhov kev xav tseem ceeb. Tab sis intuition yam tsis muaj kev ntsuas yog kwv yees. Lub Xianku 3D Foot Scanner muab lub hom phiaj cov ntaub ntawv uas hloov podiatry los ntawm kev kos duab rau hauv kev tshawb fawb, ua kom muaj pov thawj-raws li kev coj ua uas tau txais txiaj ntsig rau cov kws kho mob thiab cov neeg mob.
Hu rau Action: Nqa lub hom phiaj ntsuas rau koj qhov kev xyaum. Hu rau Xianku kom paub seb peb 3D ko taw scanning thev naus laus zis li cas txhim kho kev kuaj mob kom raug thiab cov txiaj ntsig kho mob.
